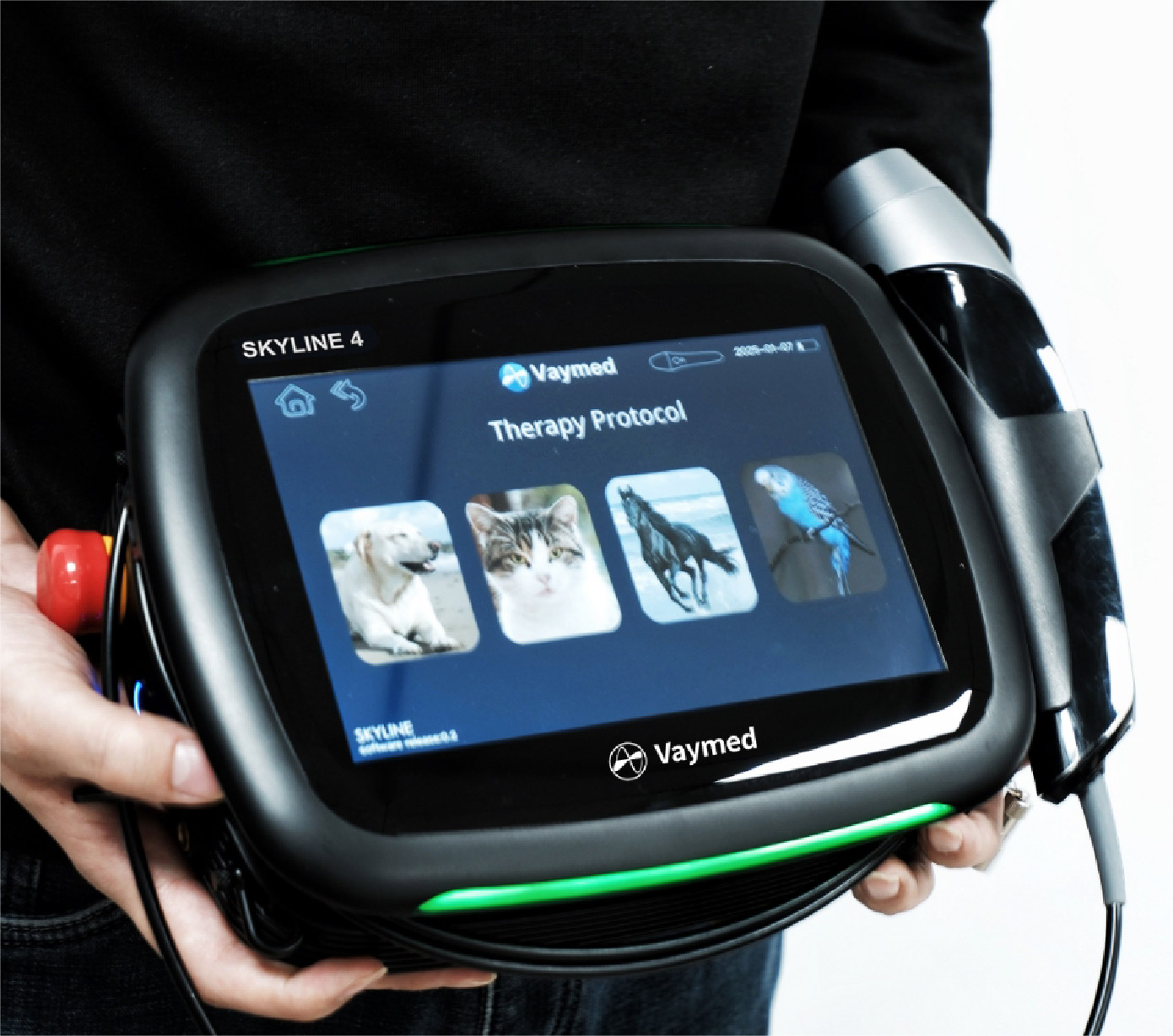

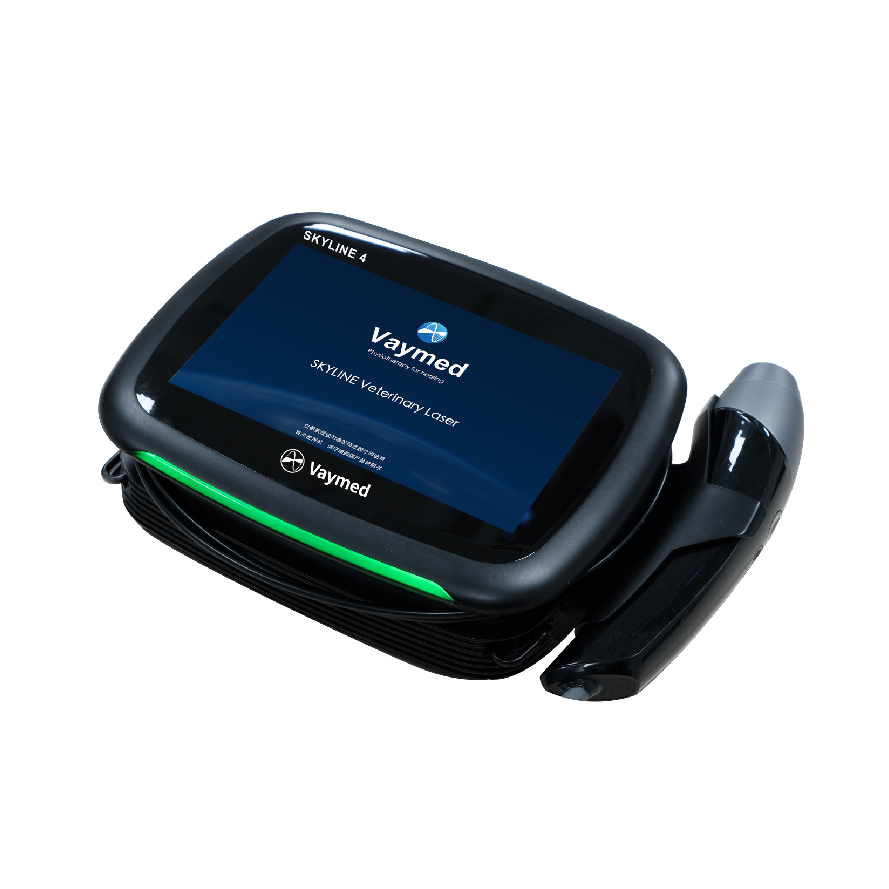

Skyline Laser Therapy

Skyline veterinary laser therapy device is a high-end medical device designed specifically for veterinarians. It has 1,460 built-in professional physiotherapy programs to help doctors achieve clinical results efficiently. The device is compatible with surgical laser fibers, supports soft tissue cutting applications, and can also be combined with endoscopes to help surgeons complete precise treatments.

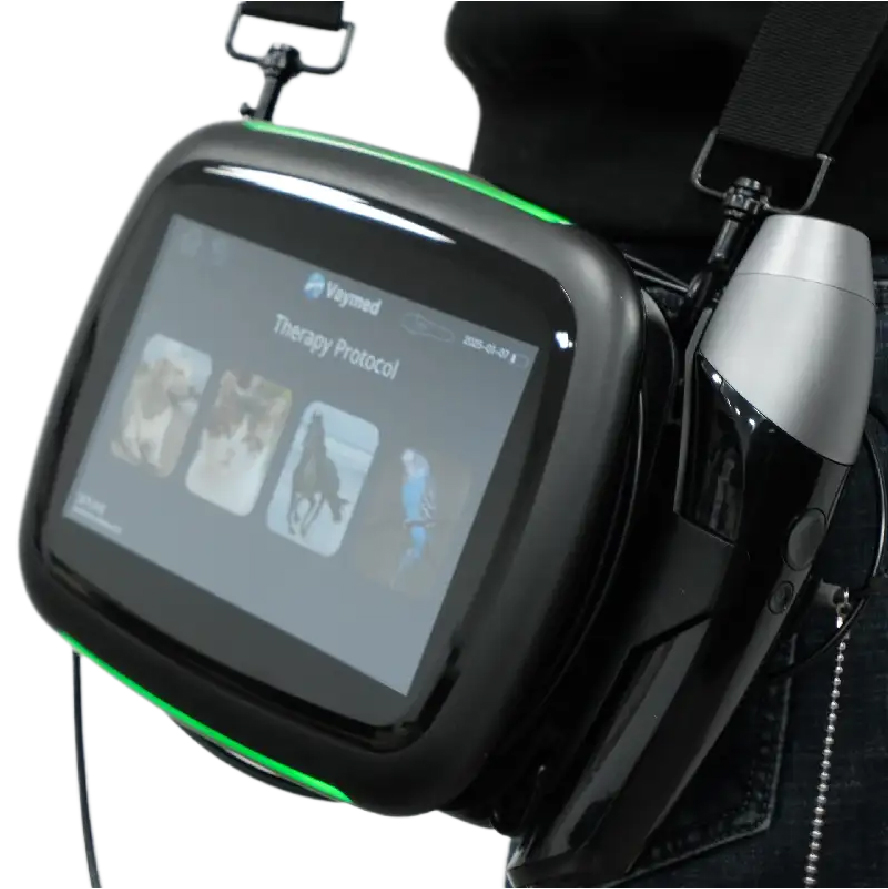

The Skyline veterinary laser therapy machine promotes accelerated post-surgical tissue regeneration and is indicated for multi-species applications, including equines, dogs, cats, and exotic pets. As a high performance veterinary laser therapy equipment, it's fitted with a rechargeable and replaceable lithium battery, ensuring excellent battery life. The satchel design allows for easy transportation, making it suitable for both indoor (home or animal hospital) and outdoor treatments.


The Skyline veterinary laser therapy machine, with its exceptional performance, has been widely adopted in orthopedics, traditional Chinese veterinary medicine (TCVM), and dermatology and so on. We provide comprehensive warranty services, leveraging cutting-edge technology to ensure stable equipment operation, so you can perform clinical procedures with confidence and peace of mind. Experience unmatched precision and reliability backed by our industry-leading warranty.

Advantages

  • 4 WAVELENGTHS

    650nm | 810nm | 915nm | 980nm provides the broadest array of tissue stimulation and penetration for maximum results.

  • 30 WATTS IN CW (30 WATT ISP PEAK)

    Higher power, shorter time, and faster result.

  • BUILT-IN MULTIMEDIA TUTORIALS

    Ensure easy handling and enhanced user experience.

  • RECHARGEABLE AND REPLACEABLE BATTERY

    12 hours ultra-long battery life, enabling continuous multi-case treatment.

  • 1460+ EXPERT TREATMENT PROTOCOLS

    All treatment plans are designed and tested by veterinarians for veterinarians, and veterinarians are provided with unlimited customized plans.

  • LIGHTWEIGHT AND PORTABLE

    Portable mobile handpiece, with a compact design for use in hospitals and home care.

  • DUST CAP AND DUST BOX

    Promotes good maintenance practices, extending equipment lifespan.

  • EMERGENCY STOP SWITCH

    Handle emergencies effortlessly, ensuring user safety.

Technical Parameters

  • Wavelength: 650nm|810nm|915nm|980nm
  • Power: CW.MAX.30 ± 3W
  • Output Mode: CW mode/Pulse mode/ISP mode
  • Battery Capacity: 7200mAh
  • Standby Time: 12 hours
  • Battery Type: lithium-ion battery
  • Fiber Connection:SMA905 connector
  • Screen Size: 8 inches
  • Dimensions: 300mm*220mm*110mm
  • Weight: 3kg

What is The Difference Between Continuous Wave (CW), Pulse And Interval Pulse (ISP) Modes?

In CW mode, the laser outputs energy in the form of a continuous uninterrupted beam, providing a stable energy output, which is suitable for treatment scenarios that require a long period of stable energy input, such as promoting tissue repair and healing.




Pulse mode outputs the laser in short bursts of high energy pulses, each of which is extremely short in duration. In this mode, the laser energy is concentrated and precise, and can be delivered to the treatment site in a short time, effectively affecting the diseased tissues while reducing the thermal damage to the surrounding normal tissues, which is suitable for the treatment of a variety of diseased tissues, such as inflammation, pain and so on.




Interval pulsed wave (ISP) mode is developed on the basis of pulsed wave, by increasing the interval time between pulses, the treatment process can maintain high energy output, but also further reduce the risk of thermal damage, and at the same time can also be adjusted according to different treatment needs, to provide a more flexible treatment program.

Why is Power Important?

Power (Watts) is the rate of energy delivery and energy is measured in Joules (1 Watt = 1 Joule per second). Higher power at the surface will deliver more energy to the desired depth. Wavelengths determine a therapeutic laser’s depth of penetration and power determines the dosage delivered to depth in tissues.

The Importance Of Laser Pulsing

Studies prove that pulse frequencies elicit different physiological responses, and that different tissue types (muscle, connective tissue, bone, etc.) respond better to different pulse frequencies. Vaymed protocols use continuous wave and various pulse frequecies in combination with multiple therapeutic wavelengths to

How Does Intense Super Pulse (ISP) Enhance Laser Therapy?

Lasers operating in super pulse mode deliver bursts of high peak power for a short period of time. Our Intense Super Pulse (ISP) mode delivers a peak of up to 30w of laser energy to deeper tissues, mitigating superficial heat build-up.

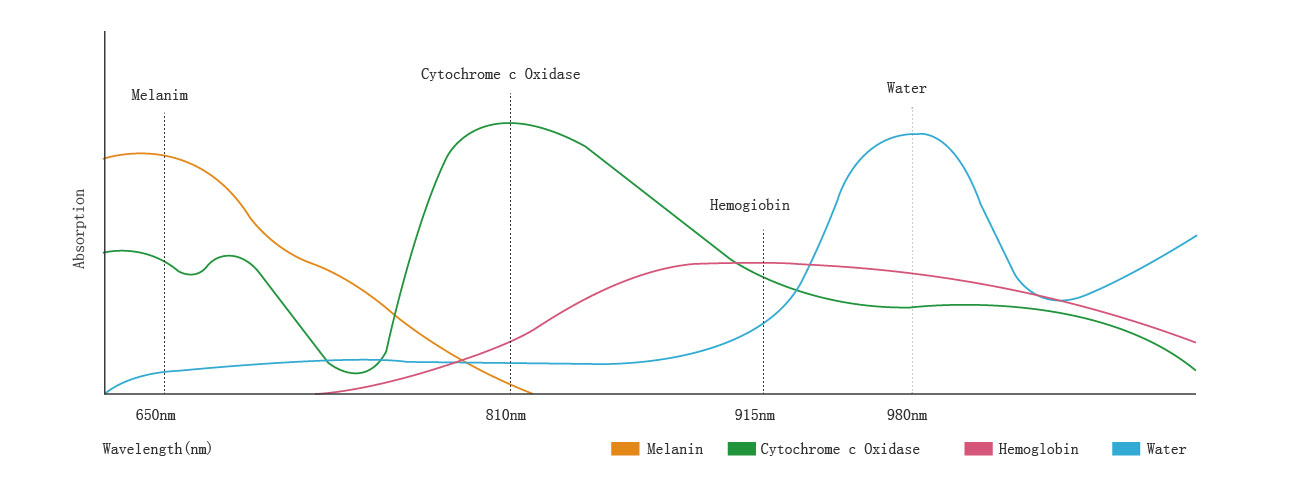

Why are Wavelengths Important?

650nm Accelerates Surface Healing

Irradiating an area with 650nm, a wavelength where melanin in our skin absorbs very well, will ensure a large dose to the superficial region. Since light can both inhibit bacteria and promote cell growth, laser therapy has incredible results in wound healing and scar tissue regulation.



810nm Increases ATP Production

The enzyme determining how efficiently the cell converts molecular oxygen into ATP has the highest absorption at 810nm. Regardless of the enzyme’s molecular state, when it absorbs a photon it will flip states. Photon absorption will accelerate the process and increase cellular ATP production.



915nm Enhances Oxygen Delivery

The quicker oxygen is released into the blood stream, the more fuel the cell has to carry out all of its natural healing processes. The peak of hemoglobin’s absorption lies at 915nm, and when this radia- tion is absorbed, more of this oxygen-fuel is made available to the cells.



980nm Improves Circulation

Water in our pet’s blood transports oxygen to the cells, carries waste away, and absorbs very well at 980nm. The energy created from absorbing a photon gets converted to heat, creating a temperature gradient at the cellular level, stimulating micro-circulation, and bringing more oxygen-fuel to the cells.

What are the contraindications to laser therapy devices?

Do not use laser beam directly into the eyeball

Do not irradiate the tumor site

Do not use laser to irradiate bleeding tissue

Do not directly irradiate the pregnant uterus



Do we need any protective gloves, clothes, or dosimetry badges to administer laser treatments?

No. The Vaymed Series uses infrared beams. X-rays and infrared are on opposite sides of the electromagnetic spectrum. X-ray photons are very high energy and can ionize molecules, damage DNA and in high enough doses can cause cancer. Infrared photons are much lower in energy. They cannot ionize molecules and therefore do not damage tissue.



Do the animals need to wear eye protection?

Not necessarily. The risk of eye injury applies to laser light that passes directly through the lens of the eye and is focused on the retina. There should only be concern when the patient can look directly at the area being treated, i.e. a front paw. Use a dark towel to shield the patient’s eyes if desired or have an assistant gently hold the head of the animal so they can’t look at the laser. When treating the jaw and side of the skull, there may possibly be some photons of light getting to the retina, but they are not being focused by the lens. When treating the back, hips, etc, the animal is not able to look directly at the Vaymed Series application site, so there is no exposure. There are protective goggles made for pets. They need to specifically cover wavelengths in the 780 nm to 1100 nm range. Some pets may not be receptive to wearing ‘doggles’. At low powers and with proper technique, laser therapy can actually be used for certain ocular conditions. This will be discussed under the specific conditions and treatments.



Do we need to clip the fur or wet a dark-coated patient?

No. By using the Vaymed Series with its durable contact head and gliding thru the fur, enough energy will penetrate to deliver an adequate dosage to the desired tis- sue. When treating dark-coated animals, be aware that the darker colors will heat up more quickly. Pay attention to your treatment delivery: move the wand over the area at a steady pace, do not hold it in one spot for a prolonged time or at high pow- ers and do not treat a very small area especially during the continuous wave (CW) phases.



What is the advantage of the diode laser surgical system?

In soft tissue surgery, the trauma to the tissue is relatively small, and there is almost no damage to the surrounding tissues of the lesion.

It is safe for metals and is especially suitable for implant surgery and maintenance.

It can reduce tissue pain response, so semiconductor lasers are usually used for superficial anesthesia in soft tissue surgery.

Surgery can achieve real-time hemostasis, greatly reducing intraoperative blood loss, especially for surgery in areas with dense blood vessels.

The optical fiber can be adapted to endoscopy/cavity mirror, supporting minimally invasive surgery.

There are no side effects such as nerve and muscle stimulation and muscle contraction.

In a liquid environment, it can operate normally.

The equipment is small in size and light in weight.

Relatively low price, long service life, low maintenance cost.



Can your laser surgical applications fragment urethral stones?

According to the known literature, lasers of near-infrared wavelengths are not usually used for lithotripsy of intracavitary stones. Laser lithotripsy is mainly performed using pulsed-emission holmium lasers (mid-infrared with a wavelength of 2100 nm). We have also heard of cases of in vivo lithotripsy using near-infrared semiconductor lasers from individual hospitals in China, but there are no international reports in the literature on this subject to the best of our knowledge. In addition, we have seen that the NIR semiconductor laser lithotripsy video uses the heat generated by the optical fiber to cause thermal fragmentation of stones, and due to the unsuitable wavelength, stones can only be fragmented into a few larger fragments, which is very inefficient. The holmium laser, on the other hand, has a wavelength that is highly absorbed by the stone, and therefore is able to break up the stone into very small pieces much more quickly, efficiently, and more easily.


Dr.Smith 2025/04/30

I am very impressed with the Skyline laser therapy machine, its professional features are excellent, with 1460 professional treatment programs and four wavelengths for comprehensive tissue treatment, The convenience of the device is equally impressive, l can use it anytime and anywhere, no just in the hospital, this machine has become an indispensable tool in my practice.

Thank you for your trust and support. If you have any suggestions and optimizations for the product, please leave us a message. We will do our best to optimize our products to meet the clinical use of doctors.
