450nm | 532nm | 650nm | 810nm | 915nm | 980nm more effective in stimulating osteoblast differentiation.

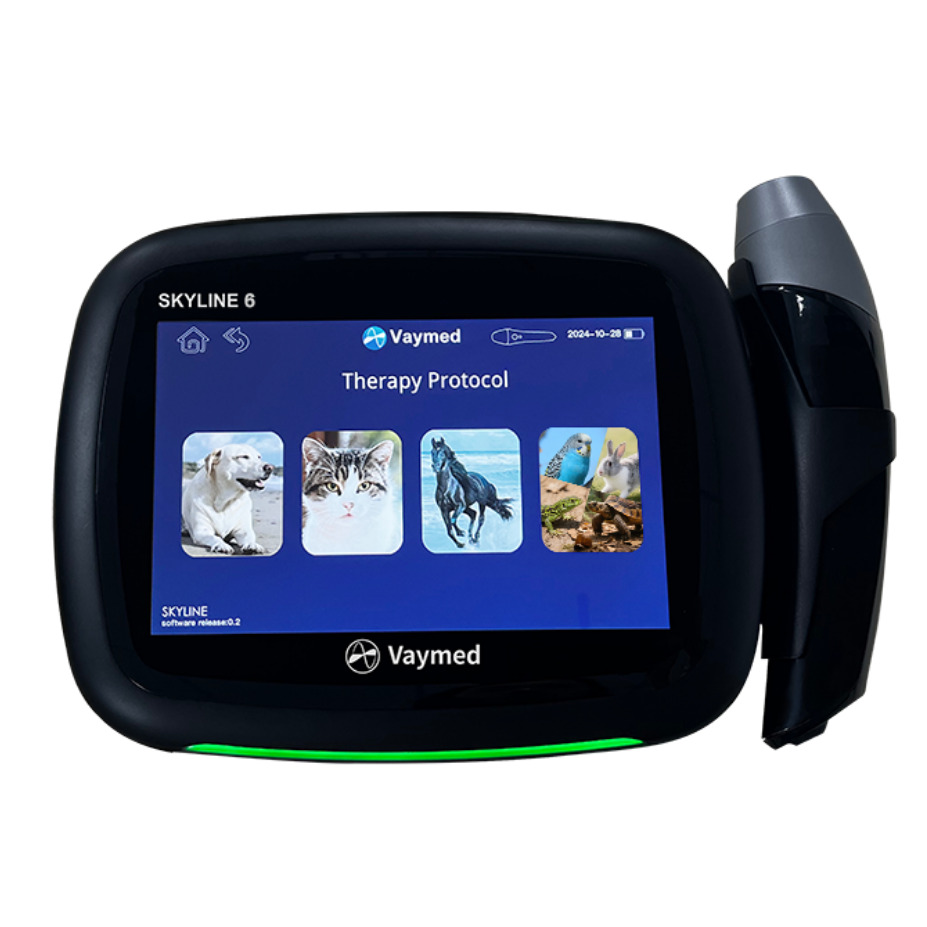

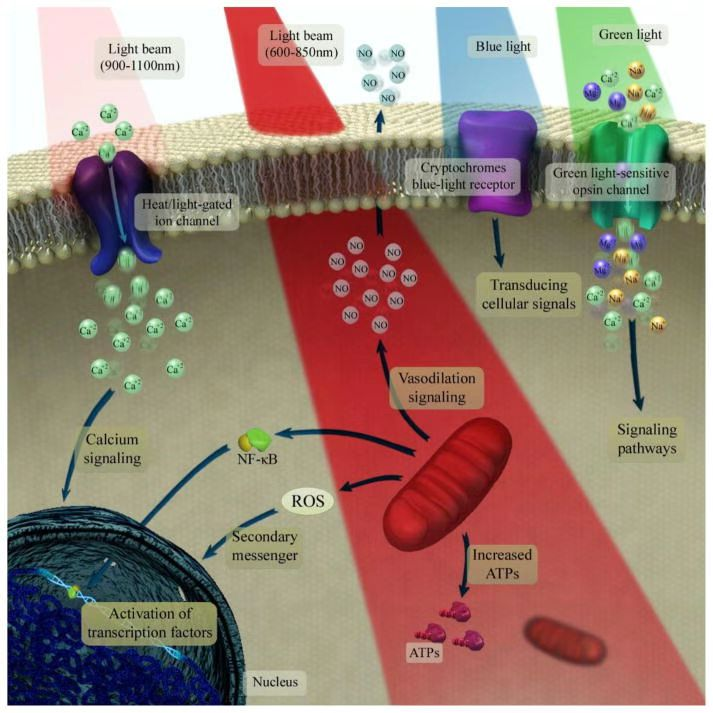

Skyline 6 is the world’s first six-wavelength veterinary Class 4 laser therapy machine, integrating 450 nm, 532 nm, 650 nm, 810 nm, 915 nm and 980 nm lasers. The synergistic multi-waveband emission triggers distinct, cell-level biological events: 450 nm and 532 nm up-regulate osteogenic genes via TRP/Ca²⁺ signaling, 650 nm accelerates superficial tissue repair, 810 nm boosts mitochondrial ATP synthesis, 915 nm enhances O₂ release from oxy-haemoglobin, and 980 nm improves local micro-circulation—demonstrating superior osteoblast-differentiation stimulation compared with Skyline 4.

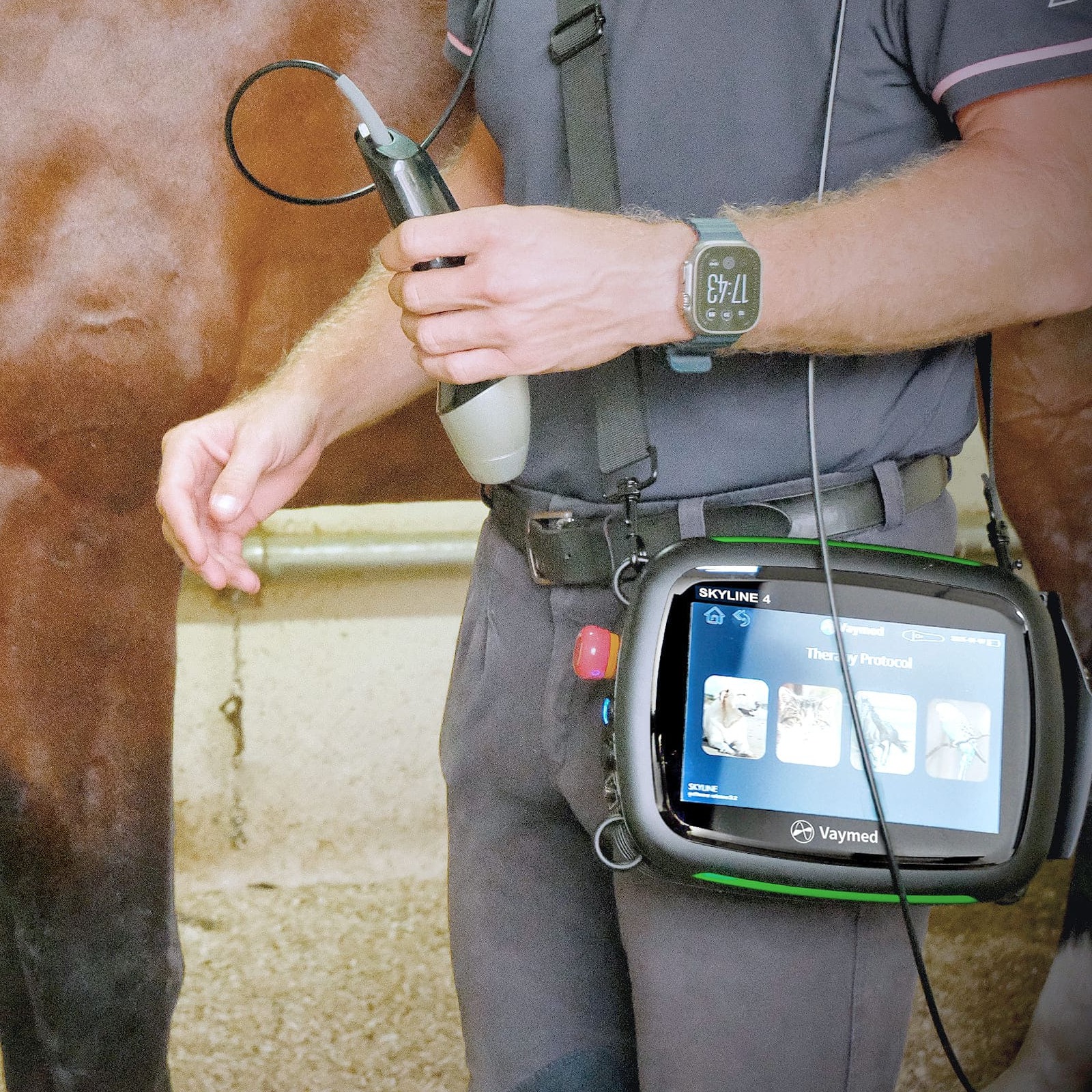

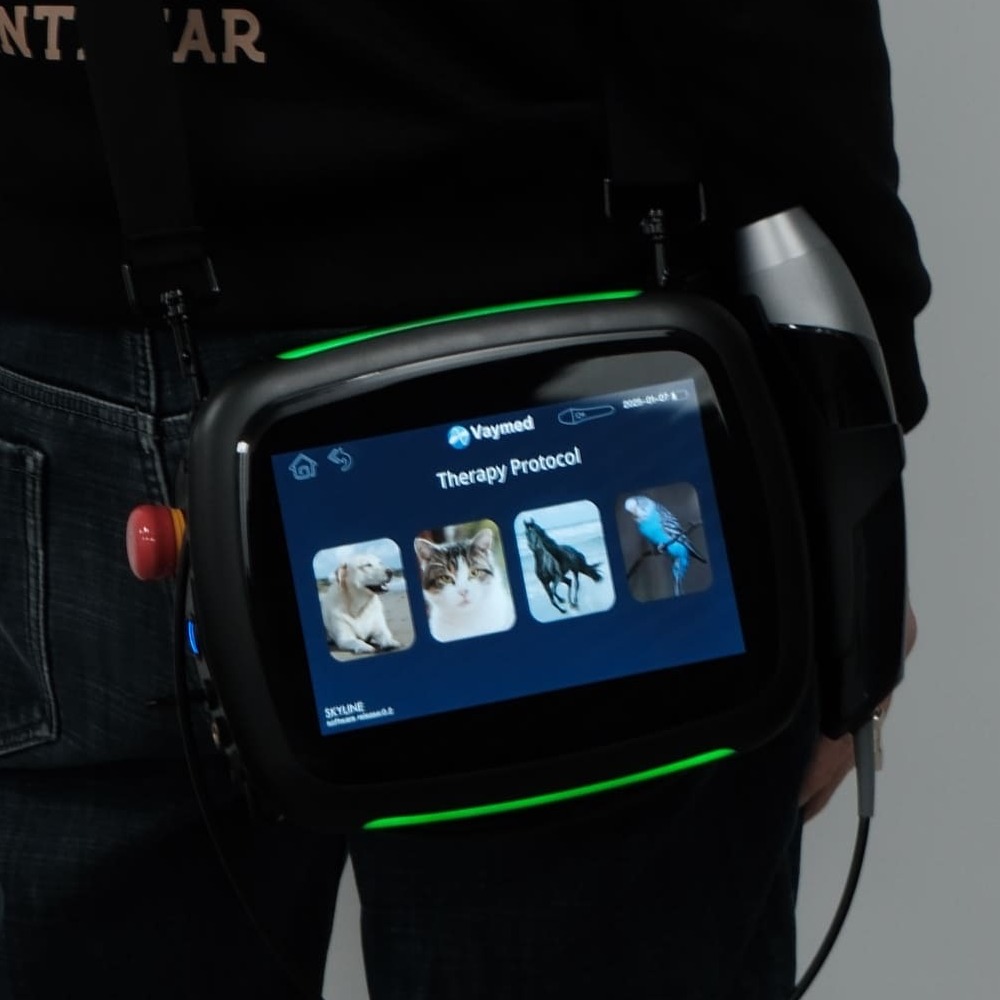

Skyline 6 class 4 laser therapy equipment arrives with 1,460 evidence-based protocols for equines, companion animals and exotics. Enter lesion site, acuity, coat color and weight and the software instantly delivers a precision dose. Power is continuously adjustable; patient files and custom protocols can be stored and recalled. Continuous, pulsed and ultra-pulsed modes are available, while hot-swappable batteries give 12h runtime. The shoulder-bag chassis lets clinicians work indoors, in-clinic or in the field without compromise.
Beyond rehabilitation, Skyline 6 class 4 laser therapy equipment doubles as a surgical fibre laser (endoscope-compatible) for intra- and extra-corporeal soft-tissue vaporisation, haemostasis and incision, enabling minimally invasive orthopaedic, dermatological and TCVM procedures—truly “one platform, seamless therapy-to-surgery transition”.
450nm | 532nm | 650nm | 810nm | 915nm | 980nm more effective in stimulating osteoblast differentiation.
Higher power, shorter time, and faster result.
Ensure easy handling and enhanced user experience.
12 hours ultra-long battery life, enabling continuous multi-case treatment.
All treatment plans are designed and tested by veterinarians for veterinarians, and veterinarians are provided with unlimited customized plans.
Portable mobile handpiece, with a compact design for use in hospitals and home care.
Promotes good maintenance practices, extending equipment lifespan.
Handle emergencies effortlessly, ensuring user safety.
In CW mode, the laser outputs energy in the form of a continuous uninterrupted beam, providing a stable energy output, which is suitable for treatment scenarios that require a long period of stable energy input, such as promoting tissue repair and healing.
Pulse mode outputs the laser in short bursts of high energy pulses, each of which is extremely short in duration. In this mode, the laser energy is concentrated and precise, and can be delivered to the treatment site in a short time, effectively affecting the diseased tissues while reducing the thermal damage to the surrounding normal tissues, which is suitable for the treatment of a variety of diseased tissues, such as inflammation, pain and so on.
Interval pulsed wave (ISP) mode is developed on the basis of pulsed wave, by increasing the interval time between pulses, the treatment process can maintain high energy output, but also further reduce the risk of thermal damage, and at the same time can also be adjusted according to different treatment needs, to provide a more flexible treatment program.
Power (Watts) is the rate of energy delivery and energy is measured in Joules (1 Watt = 1 Joule per second). Higher power at the surface will deliver more energy to the desired depth. Wavelengths determine a therapeutic laser’s depth of penetration and power determines the dosage delivered to depth in tissues.
Studies prove that pulse frequencies elicit different physiological responses, and that different tissue types (muscle, connective tissue, bone, etc.) respond better to different pulse frequencies. Vaymed protocols use continuous wave and various pulse frequecies in combination with multiple therapeutic wavelengths to
Lasers operating in super pulse mode deliver bursts of high peak power for a short period of time. Our Intense Super Pulse (ISP) mode delivers a peak of up to 30w of laser energy to deeper tissues, mitigating superficial heat build-up.

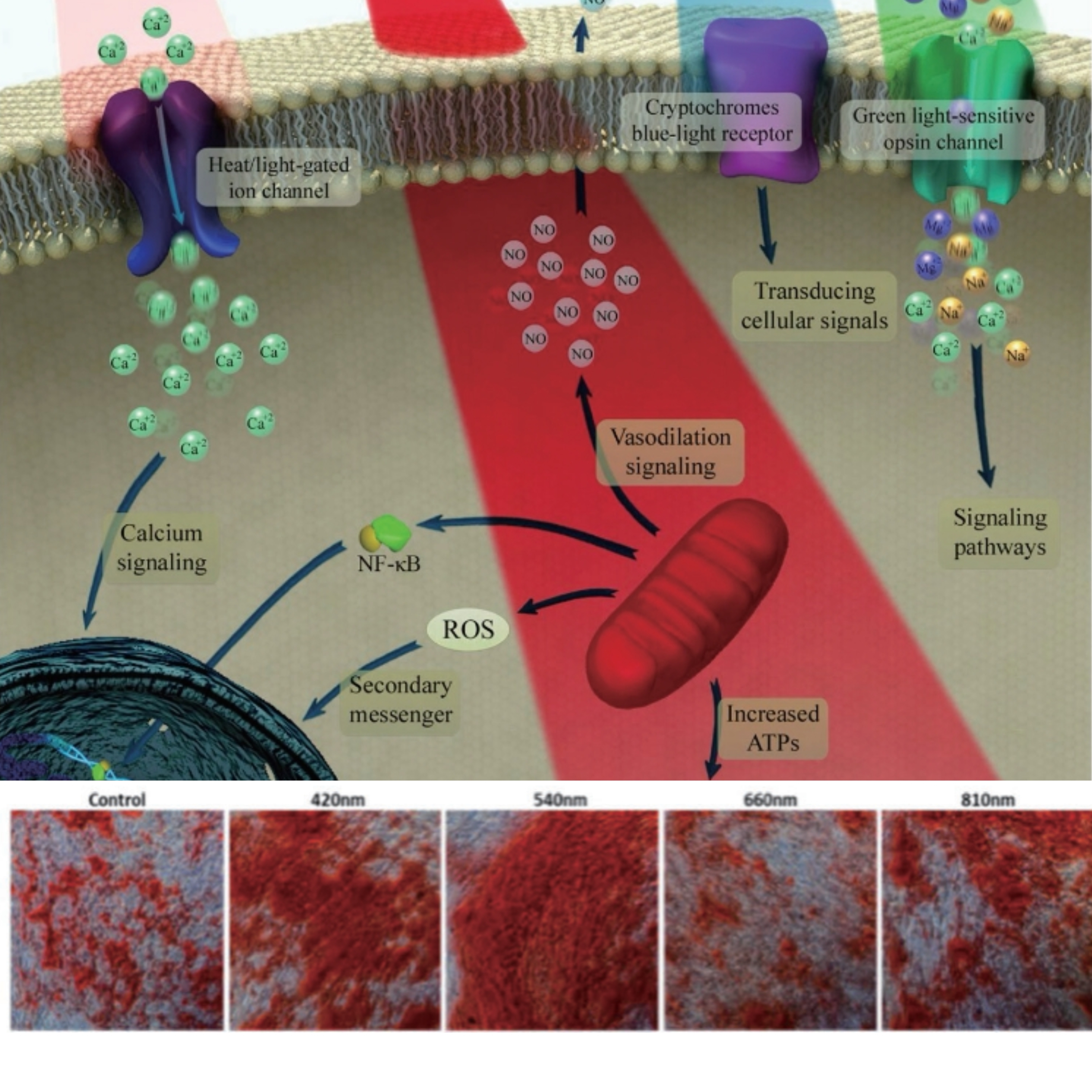

The 450 nm and 532 nm wavelengths were more effective in stimulating osteoblast differentiation compared to 660 nm and 810 nm. Intracellular calcium was higher after 450 nm and 532 nm. 450 nm and 532 nm photobiomodulation increase osteogenic relative gene expression through TRP/calcium signaling pathway.
Irradiating an area with 650nm, a wavelength where melanin in our skin absorbs very well, will ensure a large dose to the superficial region. Since light can both inhibit bacteria and promote cell growth, laser therapy has incredible results in wound healing and scar tissue regulation.
The enzyme determining how efficiently the cell converts molecular oxygen into ATP has the highest absorption at 810nm. Regardless of the enzyme’s molecular state, when it absorbs a photon it will flip states. Photon absorption will accelerate the process and increase cellular ATP production.
The quicker oxygen is released into the blood stream, the more fuel the cell has to carry out all of its natural healing processes. The peak of hemoglobin’s absorption lies at 915nm, and when this radia- tion is absorbed, more of this oxygen-fuel is made available to the cells.
Water in our pet’s blood transports oxygen to the cells, carries waste away, and absorbs very well at 980nm. The energy created from absorbing a photon gets converted to heat, creating a temperature gradient at the cellular level, stimulating micro-circulation, and bringing more oxygen-fuel to the cells.
Do not use laser beam directly into the eyeball
Do not irradiate the tumor site
Do not use laser to irradiate bleeding tissue
Do not directly irradiate the pregnant uterus
No. The Vaymed Series uses infrared beams. X-rays and infrared are on opposite sides of the electromagnetic spectrum. X-ray photons are very high energy and can ionize molecules, damage DNA and in high enough doses can cause cancer. Infrared photons are much lower in energy. They cannot ionize molecules and therefore do not damage tissue.
Not necessarily. The risk of eye injury applies to laser light that passes directly through the lens of the eye and is focused on the retina. There should only be concern when the patient can look directly at the area being treated, i.e. a front paw. Use a dark towel to shield the patient’s eyes if desired or have an assistant gently hold the head of the animal so they can’t look at the laser. When treating the jaw and side of the skull, there may possibly be some photons of light getting to the retina, but they are not being focused by the lens. When treating the back, hips, etc, the animal is not able to look directly at the Vaymed Series application site, so there is no exposure. There are protective goggles made for pets. They need to specifically cover wavelengths in the 780 nm to 1100 nm range. Some pets may not be receptive to wearing ‘doggles’. At low powers and with proper technique, laser therapy can actually be used for certain ocular conditions. This will be discussed under the specific conditions and treatments.
No. By using the Vaymed Series with its durable contact head and gliding thru the fur, enough energy will penetrate to deliver an adequate dosage to the desired tis- sue. When treating dark-coated animals, be aware that the darker colors will heat up more quickly. Pay attention to your treatment delivery: move the wand over the area at a steady pace, do not hold it in one spot for a prolonged time or at high pow- ers and do not treat a very small area especially during the continuous wave (CW) phases.
In soft tissue surgery, the trauma to the tissue is relatively small, and there is almost no damage to the surrounding tissues of the lesion.
It is safe for metals and is especially suitable for implant surgery and maintenance.
It can reduce tissue pain response, so semiconductor lasers are usually used for superficial anesthesia in soft tissue surgery.
Surgery can achieve real-time hemostasis, greatly reducing intraoperative blood loss, especially for surgery in areas with dense blood vessels.
The optical fiber can be adapted to endoscopy/cavity mirror, supporting minimally invasive surgery.
There are no side effects such as nerve and muscle stimulation and muscle contraction.
In a liquid environment, it can operate normally.
The equipment is small in size and light in weight.
Relatively low price, long service life, low maintenance cost.
According to the known literature, lasers of near-infrared wavelengths are not usually used for lithotripsy of intracavitary stones. Laser lithotripsy is mainly performed using pulsed-emission holmium lasers (mid-infrared with a wavelength of 2100 nm). We have also heard of cases of in vivo lithotripsy using near-infrared semiconductor lasers from individual hospitals in China, but there are no international reports in the literature on this subject to the best of our knowledge. In addition, we have seen that the NIR semiconductor laser lithotripsy video uses the heat generated by the optical fiber to cause thermal fragmentation of stones, and due to the unsuitable wavelength, stones can only be fragmented into a few larger fragments, which is very inefficient. The holmium laser, on the other hand, has a wavelength that is highly absorbed by the stone, and therefore is able to break up the stone into very small pieces much more quickly, efficiently, and more easily.
I am very impressed with the Skyline laser therapy machine, its professional features are excellent, with 1460 professional treatment programs and four wavelengths for comprehensive tissue treatment, The convenience of the device is equally impressive, l can use it anytime and anywhere, no just in the hospital, this machine has become an indispensable tool in my practice.
Thank you for your trust and support. If you have any suggestions and optimizations for the product, please leave us a message. We will do our best to optimize our products to meet the clinical use of doctors.
